Incredible quality and low price flex pipe exhaust system

Genleelai Autoparts manufactures a wide range of high-quality Flexible Exhaust pipes and Bellows, essential components for various applications in the Automotive and Transportation OEM, Automotive Aftermarket, Off-Road Vehicles, Power Generation, and marine vessels.

These couplings are specifically designed to perform in environments characterized by high-frequency, low-amplitude vibrations, such as those commonly encountered in an engine’s exhaust system.

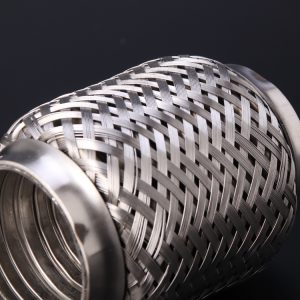

The Flexible Exhaust Coupling solutions from Genleelai Autoparts feature stainless steel multi-ply bellows, available with or without external braiding. The braided construction provides:

Enhanced flexibility and performance under vibration-induced stress.

Protection for the bellows against external damage.

Additionally, the use of stainless steel ensures excellent corrosion resistance, guaranteeing durability and reliable operation in demanding environments.

Choose Genleelai Autoparts for robust, dependable solutions that meet the highest industry standards.

Genleelai Autoparts offers Flexible Exhaust pipes with a variety of internal liner options, including Inner Braid, Interlock, and Directional Solid Liners. These internal liners are specifically engineered to:

• Protect the bellows from high-velocity exhaust gases.
• Reduce noise generated by turbulent gas flow.
• Prevent resonance, which could otherwise lead to premature failure of the bellows.

These advanced designs ensure optimal performance and durability in demanding applications.

Construction/Structure

• Components:
  • Bellows + Double Braid + Nipple + Cap
  • Bellows with Outer Braid / Bellows with Inner Braid
  • Bellows with Interlock / Bellows with Nipples
  • Customized structures are available.
• Functions of Components:
  • Bellows: Provides flexible connection and absorbs shocks.
  • Outer Braid: Ensures pressure resistance and protects the bellows.
  • Inner Braid or Interlock: Guides exhaust flow, protects the bellows, and reduces engine noise.
  • Caps: Securely connect the outer braid and bellows.

Size/Specifications

• Inner Diameter (ID): Ranges from 1” to 6”.
• Overall Length: Ranges from 4” to 17”.
• Available Sizes (ID):
  • Standard options: 1-3/4″ (45mm), 2″ (51mm), 2-1/4″ (57.2mm), 2-1/2″ (63.5mm), 3″ (76.2mm), 3-1/2″ (89mm), 4″ (102mm), 43mm, 50mm, 52mm, 54.5mm, 60mm, 61mm, 65mm, 70mm.
• Overall Length Options:
  • Standard options: 4″ (102mm), 6″ (152mm), 8″ (203mm), 9″ (230mm), 10″ (254mm), 11″ (280mm), 12″ (305mm), 120mm, 165mm, 180mm, 200mm, 240mm, 250mm.
• Customization:
  • Sizes, structures, designs, drawings, and logos can be tailored to specific needs.

Functions & Features

1. Corrugated Tube Construction:
   • Manufactured using double-layer hydraulic pressure, with water as the forming medium.
   • Offers excellent sealing performance and flexibility, enhancing the exhaust system’s functionality.
2. Flexible Connection:
   • Installed between the engine exhaust manifold and the muffler purifier.
   • Provides a flexible connection for the exhaust system, improving shock absorption and noise reduction.
3. Applications:
   • Suitable for light-duty vehicles, mini cars, coaches, trucks, and motorcycles.
4. Performance Benefits:
   • Reduces noise and air pollution.
   • Enhances ease of installation and extends the lifespan of the exhaust system.

With customizable options and high-performance features, these flexible exhaust components are an ideal solution for a wide range of automotive applications.
