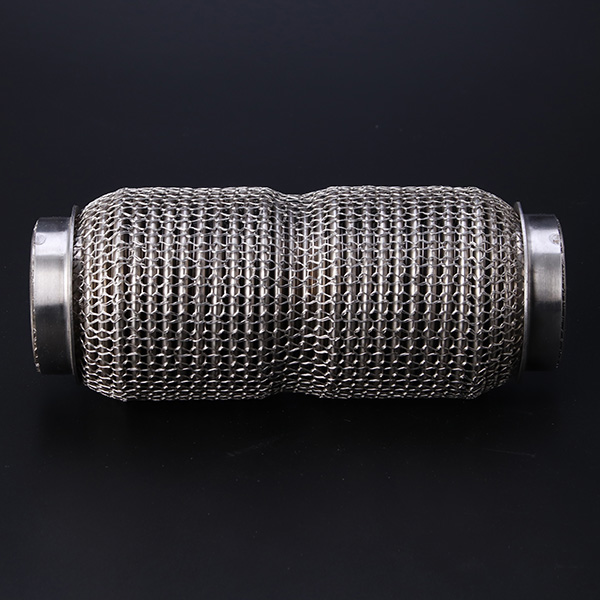

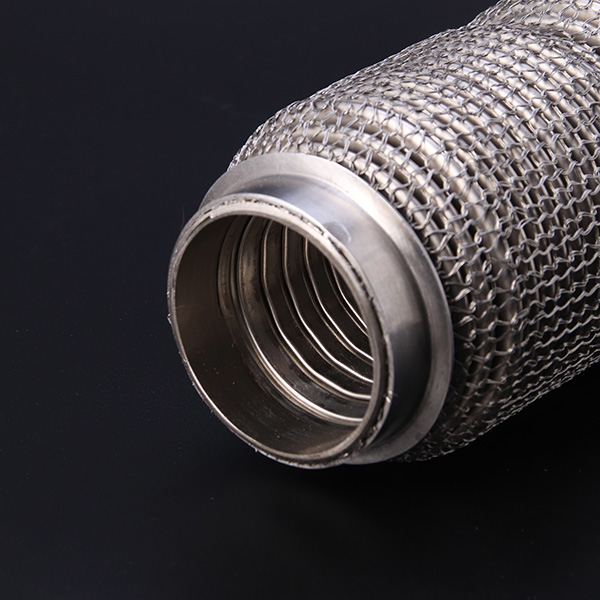

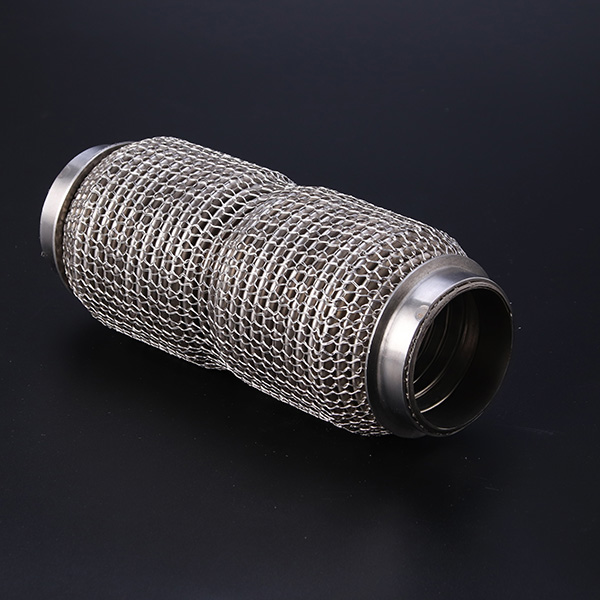

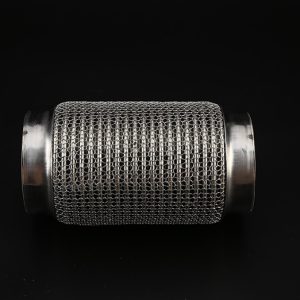

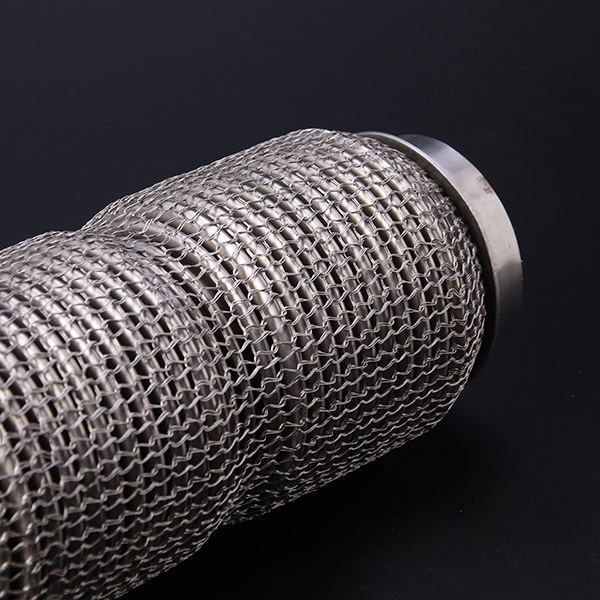

High-strength and durable braided stainless steel monofilament corrugated metal hose with fittings

Home/

Dense waves Series, Exhaust flexible pipe

High-strength and durable braided stainless steel monofilament corrugated metal hose with fittings

share to:

Steel：201/304 Stainless Steel or Customized

Size:Various Size Available or Customized

Market:All Over World Especially European USA Middle East

Capacity:150000 Piece/Pieces Per Month

Delivery:2~5 Weeks

Chat Now

Product Details

Product Description

Exhaust flex pipe are specialized components designed to accommodate movement and vibration in exhaust systems. They are typically made from flexible materials, such as stainless steel, and are integrated into the exhaust system to prevent damage and noise caused by engine vibrations and thermal expansion.

Applications:

Automotive Industry:
Vehicle Exhaust Systems: Flex pipes are used in cars, trucks, and motorcycles to absorb engine vibrations and accommodate thermal expansion, reducing stress on the exhaust system and preventing leaks.
Performance Upgrades: In high-performance vehicles, flex pipes are used to maintain flexibility and prevent exhaust system damage during aggressive driving

Industrial Equipment:
Machinery Exhaust: Flex pipes are employed in industrial machinery and equipment to manage vibrations and thermal expansion in exhaust systems, ensuring long-term durability and reliability.
Generator Exhaust Systems: Used in power generators to reduce vibration and accommodate movement, which helps in maintaining the efficiency and longevity of the exhaust system.

Marine Applications:
Marine Engines: Flex pipes are used in boats and marine engines to absorb vibrations and thermal expansion, preventing damage to the exhaust system and ensuring smooth operation in harsh marine environments.
Exhaust System Flexibility: Provides flexibility in the exhaust system to accommodate engine movements and reduce stress on the boat’s hull.
Aerospace Industry:

Aircraft Engines: Used in aircraft exhaust systems to manage vibrations and thermal expansion, ensuring the structural integrity of the exhaust system under varying flight conditions.
Spacecraft Applications: Flex pipes are used in spacecraft to handle the high temperatures and vibrations experienced

Construction and Heavy Equipment:
Construction Machinery: Employed in heavy construction equipment, such as bulldozers and excavators, to manage engine vibrations and prevent damage to the exhaust system.
Heavy-Duty Vehicles: Used in large vehicles like dump trucks and loaders to absorb vibrations and thermal expansion in the exhaust system.

Inner Diameter	Overall Length	Inner Diameter	Overall Length	Inner Diameter	Overall Length
I.D	O/L	I.D	O/L	I.D	O/L
1-3/4 ” (45mm)	4 ” (102mm)	2-1/2 “(63.5mm)	4 ” (102mm)	43mm	120mm
	6 ” (152mm)		6 ” (152mm)		165mm
	8 ” (203mm)		8 ” (203mm)		180mm
	9 ” (230mm)		9 ” (230mm)	50mm(52mm)	120mm
	10 ” (254mm)		10 ” (254mm)	50mm(52mm)	165mm
	11 ” (280mm)		11 ” (280mm)	54.5mm	120mm
2″(51mm)	12 ” (305mm)		12 ” (305mm)		150mm
	4 ” (102mm)	3 “(76.2mm)	4 ” (102mm)		180mm
	6 ” (152mm)		6 ” (152mm)		200mm
	8 ” (203mm)		8 ” (203mm)		250mm
	9 ” (230mm)		10 ” (254mm)	60mm(61mm)	160mm
	10 ” (254mm)		12 ” (305mm)		200mm
2-1/4 ” (57.2mm)	11 ” (280mm)		6 ” (152mm)		240mm
	12 ” (305mm)	3-1/2″ (89mm)	8 ” (203mm)	65mm	150mm
	4 ” (102mm)		10 ” (254mm)	65mm	200mm
	6 ” (152mm)		12 ” (305mm)	70mm	100m
	8 ” (203mm)	4″ (102mm)	8 ” (203mm)		120mm
	9 ” (230mm)		10 ” (254mm)		150mm
	10 ” (254mm)		12 ” (305mm)		200mm
	11 ” (280mm)	ID 25~150mm OL 100~400mm Customized size, design, drawing and logo are welcome !

Construction and Structure

Components

Bellows + Double Braid + Nipple + Cap
Bellows with Outer Braid / Bellows with Inner Braid
Bellows with Interlock / Bellows with Nipples

Customization: Tailored structures are available to meet specific application requirements.

Functions of Components

Bellows: Provides a flexible connection and absorbs shocks.
Outer Braid: Ensures pressure resistance and protects the bellows.
Inner Braid or Interlock: Directs exhaust flow, shields the bellows, and reduces engine noise.
Caps: Securely connect the outer braid to the bellows for enhanced stability.

Size and Specifications

Inner Diameter (ID)

Available in sizes ranging from 1″ to 6″.

Overall Length

Options range from 4″ to 17″.

Standard Inner Diameter (ID) Options

Imperial Sizes:
1-3/4″ (45mm), 2″ (51mm), 2-1/4″ (57.2mm), 2-1/2″ (63.5mm), 3″ (76.2mm), 3-1/2″ (89mm), 4″ (102mm)
Metric Sizes:
43mm, 50mm, 52mm, 54.5mm, 60mm, 61mm, 65mm, 70mm

Standard Overall Length Options

Imperial Sizes:
4″ (102mm), 6″ (152mm), 8″ (203mm), 9″ (230mm), 10″ (254mm), 11″ (280mm), 12″ (305mm)
Metric Sizes:
120mm, 165mm, 180mm, 200mm, 240mm, 250mm

Customization: Tailored sizes, structures, designs, drawings, and logos are available to suit diverse application needs.

Functions and Features

Corrugated Tube Construction

Manufactured using a double-layer hydraulic pressure process with water as the forming medium, ensuring superior sealing performance and flexibility.
Optimizes exhaust system functionality for a reliable connection.

Flexible Connection

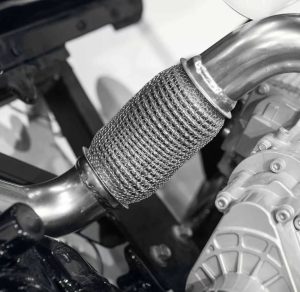

Installed between the engine exhaust manifold and muffler purifier to enhance shock absorption and noise reduction in the exhaust system.

Applications

Suitable for light-duty vehicles, mini cars, coaches, trucks, and motorcycles.

Performance Benefits

Reduces noise and air pollution.
Simplifies installation and extends the lifespan of the exhaust system.

With advanced construction, customizable options, and high-performance features, Genleelai Autoparts’ flexible exhaust components deliver the ideal solution for a wide range of automotive applications.
