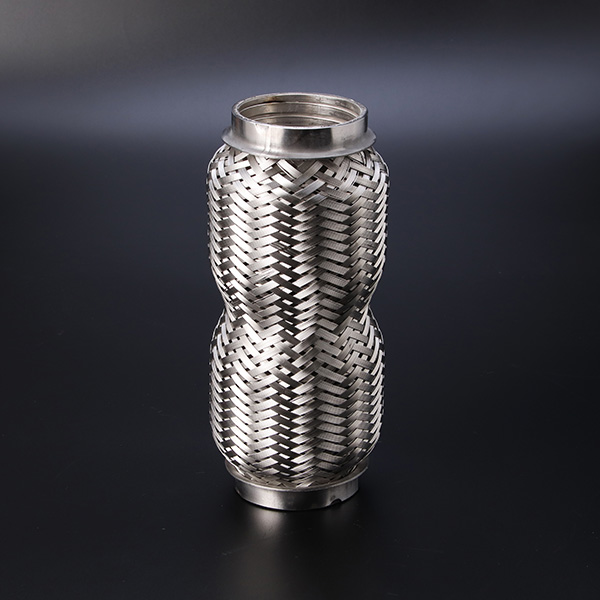

High Quality Factory Supply 45/200mm SS304 Wire Mesh Flexible Exhaust Pipe

High Quality Factory Supply 45/200mm SS304 Wire Mesh Flexible Exhaust Pipe

share to:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

Steel

Material Options
Crafted from high-quality 201 or 304 stainless steel, with customization available to suit specific needs.

Size
Versatility: Available in various standard sizes or tailored to meet precise requirements.

Material Specification
Exceptional Quality: Made from premium 201 or 304 stainless steel, ensuring outstanding durability and performance.

HS Code
Classification: 8708920000.

Temperature Range
Reliable Performance: Operates efficiently within a wide temperature range of -20°C to 650°C.

Working Pressure
Durable Construction: Designed to handle pressures from 0 to 5 MPa with ease.

Product Details

Genleelai Autoparts specializes in producing premium 1.5-inch flexible exhaust pipes and bellows, vital components for various industries, including automotive OEMs, the automotive aftermarket, off-road vehicles, power generation, and marine vessels.

Our flexible exhaust couplings are expertly engineered to provide exceptional performance in environments prone to high-frequency, low-amplitude vibrations—conditions commonly found in engine exhaust systems.

Key Features of Genleelai Autoparts’ 45/200mm SS304 Wire Mesh Flexible Exhaust Pipe:

  • Stainless Steel Multi-Ply Bellows
    Available with or without external braiding to meet a wide range of application requirements.
  • Braided Construction
    Provides outstanding flexibility and resilience, effectively mitigating stress caused by vibrations.
    Protects the bellows from external damage, enhancing long-term durability.
  • Exceptional Corrosion Resistance
    Crafted from high-quality stainless steel to ensure superior reliability and an extended service life, even in the harshest environments.

Choose Genleelai Autoparts for reliable, high-performance exhaust solutions that meet and exceed the industry’s most rigorous standards.

dense waves102-150-2



Genleelai Autoparts offers flexible exhaust pipes featuring a range of internal liner options, including Inner Braid, Interlock, and Directional Solid Liners. Each liner is expertly engineered to meet the rigorous demands of high-performance applications.

Benefits of Internal Liners:

  • Protection Against High-Velocity Gases
    Shields the bellows from the abrasive effects of fast-moving exhaust gases, ensuring long-lasting durability.
  • Noise Reduction
    Minimizes turbulence-induced noise, enhancing overall acoustic performance for quieter operation.
  • Resonance Prevention
    Reduces the risk of resonance, decreasing the likelihood of premature bellows failure.

These advanced internal liner designs offer exceptional performance, reliability, and durability, ensuring optimal functionality even in the most challenging environments.

dense waves102-150

Construction and Structure

Components:

  • Bellows + Double Braid + Nipple + Cap
  • Bellows with Outer Braid / Bellows with Inner Braid
  • Bellows with Interlock / Bellows with Nipples

Customization: Tailored structures are available to meet specific requirements.

Functions of Components:

  • Bellows: Provides a flexible connection and absorbs shocks.
  • Outer Braid: Ensures pressure resistance and protects the bellows.
  • Inner Braid or Interlock: Directs exhaust flow, shields the bellows, and minimizes engine noise.
  • Caps: Securely connect the outer braid to the bellows.

Size and Specifications:

  • Inner Diameter (ID): Available in sizes ranging from 1″ to 6″.
  • Overall Length: Options range from 4″ to 17″.

Standard Inner Diameter (ID) Options:

  • Imperial Sizes: 1-3/4″ (45mm), 2″ (51mm), 2-1/4″ (57.2mm), 2-1/2″ (63.5mm), 3″ (76.2mm), 3-1/2″ (89mm), 4″ (102mm)
  • Metric Sizes: 43mm, 50mm, 52mm, 54.5mm, 60mm, 61mm, 65mm, 70mm

Standard Overall Length Options:

  • Imperial Sizes: 4″ (102mm), 6″ (152mm), 8″ (203mm), 9″ (230mm), 10″ (254mm), 11″ (280mm), 12″ (305mm)
  • Metric Sizes: 120mm, 165mm, 180mm, 200mm, 240mm, 250mm

Customization: Tailored sizes, structures, designs, drawings, and logos are available to suit various application needs.

Functions and Features:

  • Corrugated Tube Construction:
    Manufactured using a double-layer hydraulic pressure process with water as the forming medium, providing superior sealing performance and flexibility, ensuring optimal exhaust system functionality.
  • Flexible Connection:
    Installed between the engine exhaust manifold and muffler purifier to enhance shock absorption and noise reduction within the exhaust system.

Applications:
Ideal for light-duty vehicles, mini cars, coaches, trucks, and motorcycles.

Performance Benefits:

  • Reduces noise and air pollution.
  • Simplifies installation and extends the lifespan of the exhaust system.

With customizable options, advanced construction, and high-performance features, Genleelai Autoparts’ flexible exhaust components offer the perfect solution for a wide range of automotive applications.
