Expandable Flex Pipe: The Versatile Solution for Flexible Exhaust Systems-Genleelai

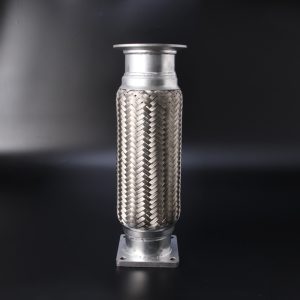

Construction and Structure

Components:

Bellows + Double Braid + Nipple + Cap

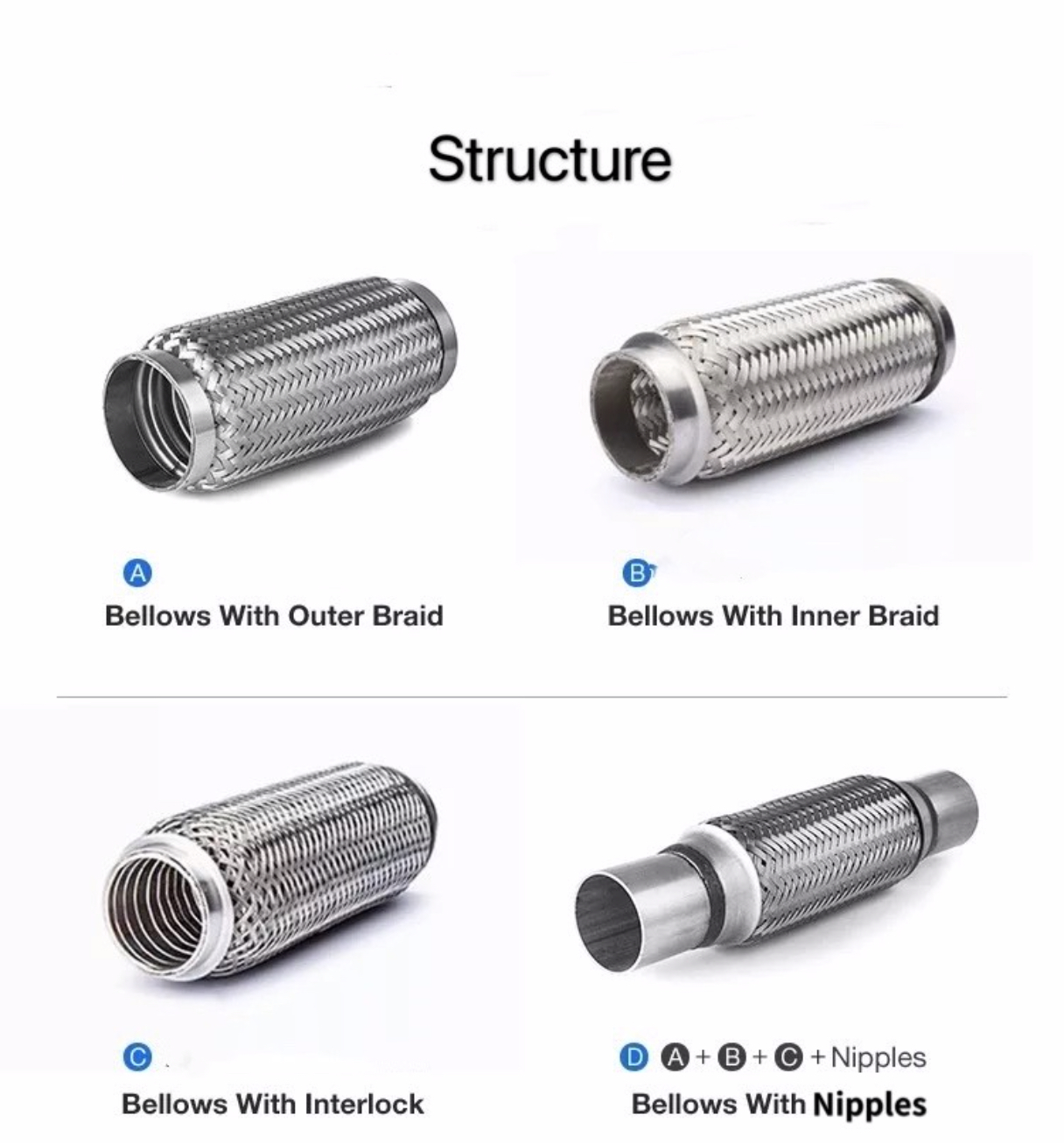

Bellows with Outer Braid / Bellows with Inner Braid
Bellows with Interlock / Bellows with Nipples
Customization: Tailored structures available to meet specific requirements.

Functions of Components:

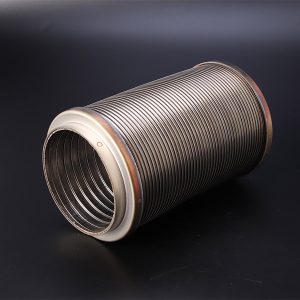

Bellows: Provides a flexible connection and absorbs shocks.

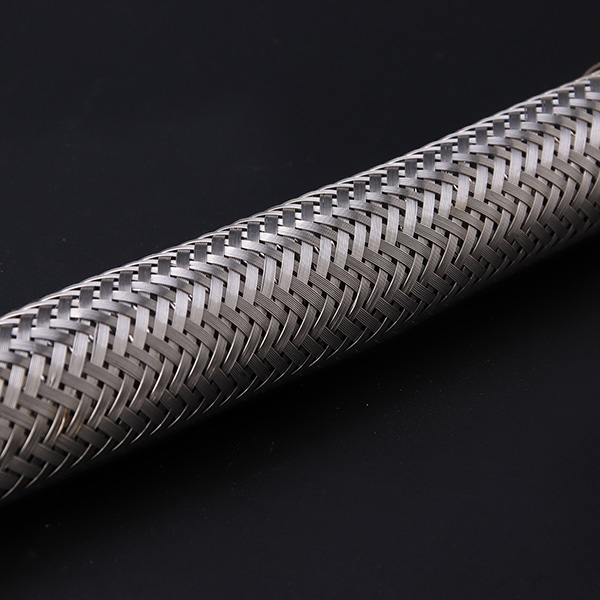

Outer Braid: Ensures pressure resistance and shields the bellows.
Inner Braid or Interlock: Directs exhaust flow, protects the bellows, and minimizes engine noise.
Caps: Securely connect the outer braid to the bellows.

Size and Specifications

Inner Diameter (ID):

Available in a range from 1″ to 6″.

Overall Length:

Options range from 4″ to 17″.

Standard Inner Diameter (ID) Options:

Imperial Sizes: 1-3/4″ (45mm), 2″ (51mm), 2-1/4″ (57.2mm), 2-1/2″ (63.5mm), 3″ (76.2mm), 3-1/2″ (89mm), 4″ (102mm).
Metric Sizes: 43mm, 50mm, 52mm, 54.5mm, 60mm, 61mm, 65mm, 70mm.

Standard Overall Length Options:

Imperial Sizes: 4″ (102mm), 6″ (152mm), 8″ (203mm), 9″ (230mm), 10″ (254mm), 11″ (280mm), 12″ (305mm).
Metric Sizes: 120mm, 165mm, 180mm, 200mm, 240mm, 250mm.

Customization:

Tailored sizes, structures, designs, drawings, and logos are available to meet diverse application needs.

Functions and Features

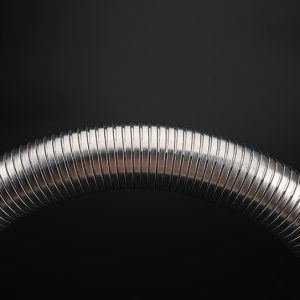

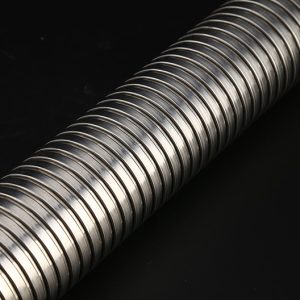

Corrugated Tube Construction:

Crafted using a double-layer hydraulic pressure process with water as the forming medium.
Delivers superior sealing performance and flexibility, ensuring optimal exhaust system functionality.

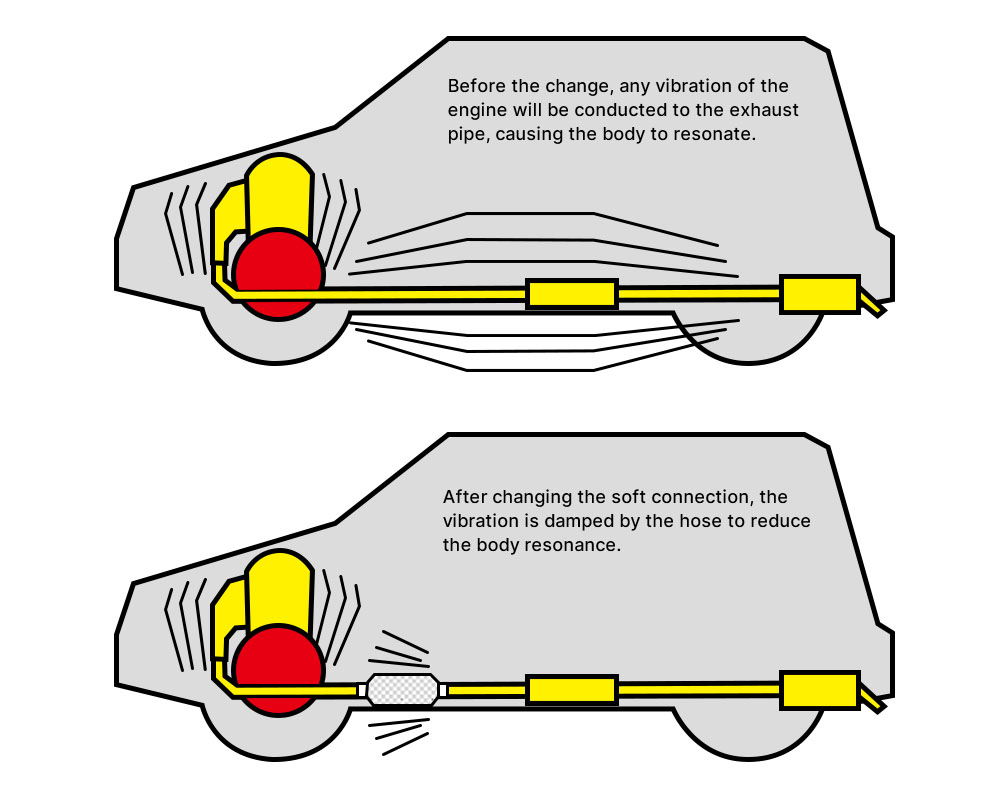

Flexible Connection:

Installed between the engine exhaust manifold and the muffler purifier.
Enhances shock absorption and noise reduction within the exhaust system.

Applications:

Ideal for light-duty vehicles, mini cars, coaches, trucks, and motorcycles.

Performance Benefits:

Reduces noise and air pollution.
Simplifies installation and extends the lifespan of the exhaust system.

With customizable options, advanced construction, and high-performance features, Genleelai Autoparts’ flexible exhaust components are the ideal solution for a wide range of automotive applications.
