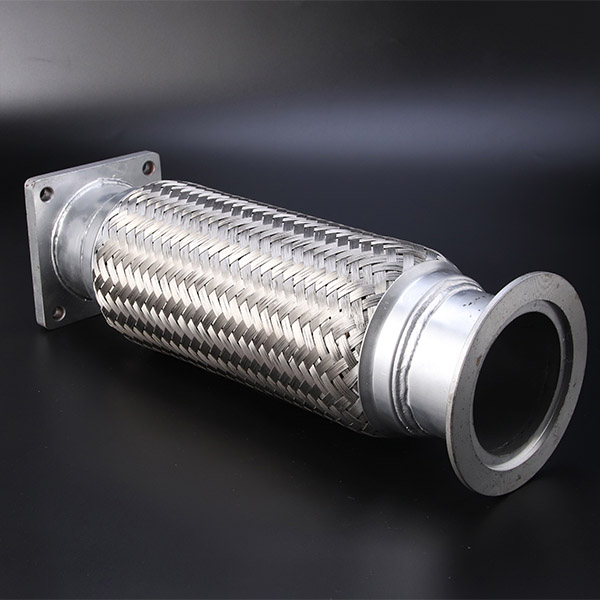

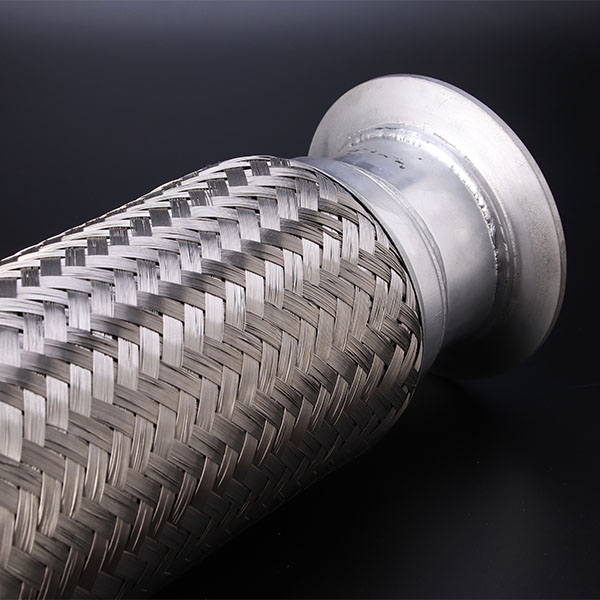

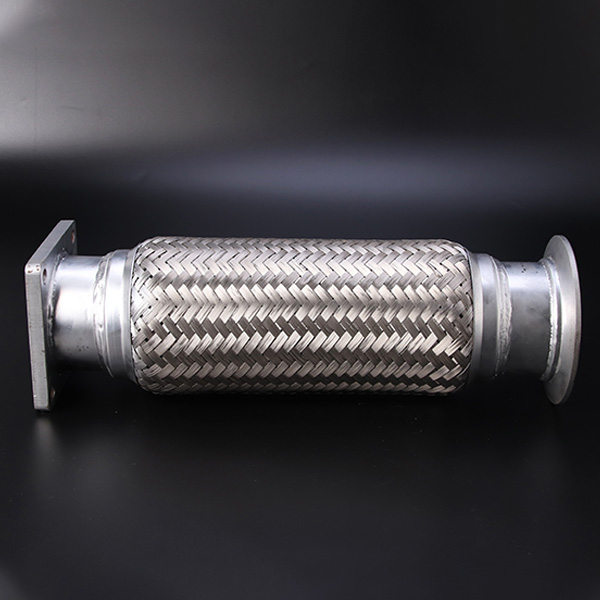

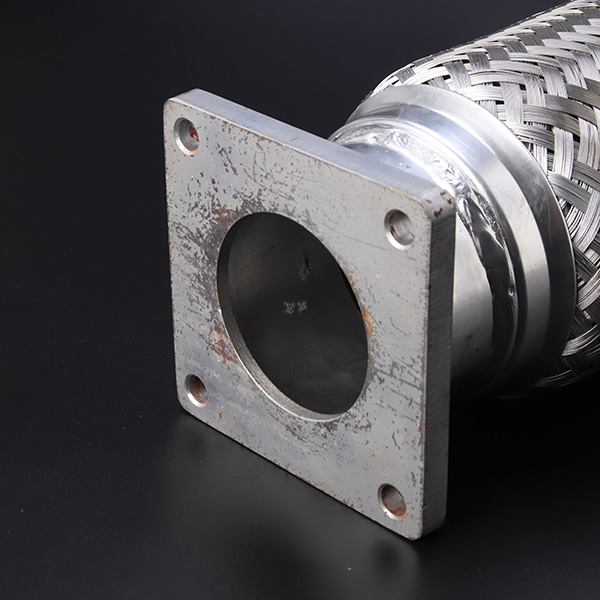

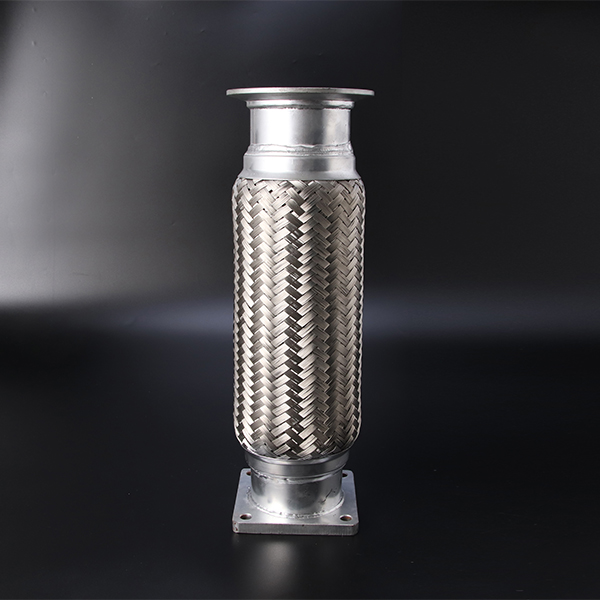

Combined corrugated 3 inch exhaust pipe Stainless steel Flexible Pipe connections

Construction/Structure:

Bellow + Double braid +Nipple +Cap

Bellows with outer Braid / Bellows with Inner braid

Bellows with Interlock/Bellows with Nipples

Customized structure is welcomed

Bellows—Flexible connection and shock absorption

Outer Braid—Bearing pressure and Protect bellow

Inner Braid or Interlock—Stream guidance, protect bellows, decrease engine noise

Caps—-Connect outer braid & bellows

Size/Specifications:

ID: 1”~6” Overall Length: 4”~17”

Different Diameter & Overall length can be selected from our current models  Customized size, structure, drawing  also LOGO can be followed

Function & Features:

1. The corrugated tube adopts double layer hydraulic pressure, and takes water as the medium when forming. In this way, the sealing performance and flexibility are good, which is beneficial to auto-exhaust.
2. The Flexible Exhaust Pipe is mounted between the engine exhaust manifold and the  muffler purifier to equip the entire exhaust pipe system with flexible connection, which play a role in shock absorption and noise reduction, has a good effect on installation and life extension.
3. The exhaust system is used in light-duty vehicle , minicar, coach, truck and motorcycle.
4. The Exhaust Bellows can reduce noise & air pollution
